Note
| Removal and installation are described only for the left mirror
cover. The right side is similar. |
| – |
Remove mirror glass
→ Chapter. |
| – |

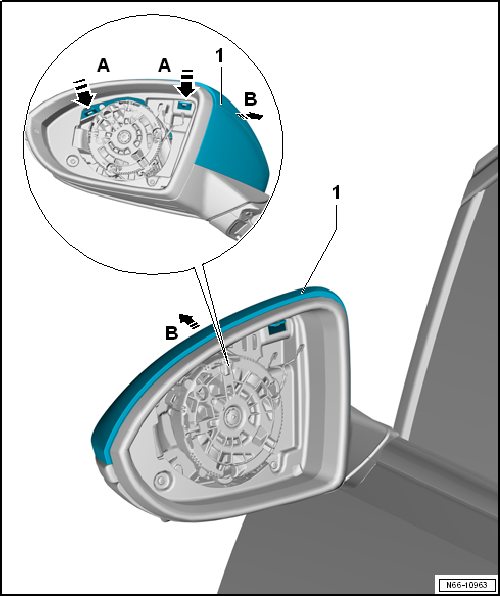

Release locking hooks -arrows A-. |
| – |
Pull mirror cover -1- backwards off
mirror mounting in -direction of arrow B-. |
| – |
Position mirror cover -1- and press on
until locking hooks engage audibly. |
| – |
Install mirror glass
→ Chapter „Removing and installing mirror glass“. |
Questions & answers
Removing and installing mirror cover — Volkswagen Golf Mk7
How do I remove the Golf Mk7 mirror housing cover?
Remove the mirror glass first, release the retaining clips on the cover and pull it off the housing shell.
Special tools and workshop equipment
required
...
Special tools and workshop equipment
required
Torque wrench -V.A.G 1783
