Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - centre armrest

This assembly overview covers the Volkswagen Golf Mk7 rear centre armrest: the intermediate padding, the armrest itself, and the lid and trim for the through-loading aperture.

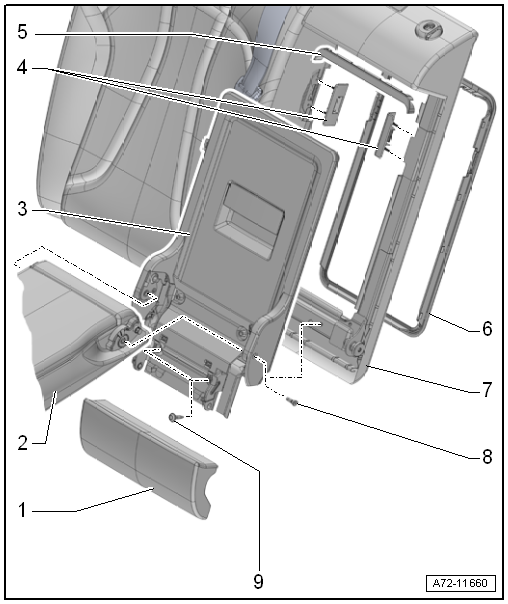

Assembly overview - centre armrest

1 -  Intermediate padding
  • Allocation → Electronic Parts Catalogue
  • Removing and installing → Chapter
2 -  Centre armrest
  • Removing and installing → Chapter
3 -  Lid
  • For through-loading aperture
  • Removing and installing → Chapter
4 -  Trim
  • For lid catch
  • Removing and installing → Chapter
5 -  Stop strip
  • Clipped into rear seat backrest
  • Removing and installing → Chapter
6 -  Cover frame
  • For through-loading aperture
  • Clipped into rear seat backrest.
  • Removing and installing → Chapter
7 -  Right rear seat backrest (2/3)
  • With through-loading aperture
  • Allocation → Electronic Parts Catalogue
8 -  Bolt
  • Qty. 2
  • Self-tapping
  • Renew after removal
  • 12 Nm
9 -  Bolt
  • Qty. 2
  • 8 Nm
