Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - suspension strut, upper suspension link

This assembly overview covers the Volkswagen Golf Mk7 suspension strut: the spring seat with its correct installation position, and a bolt always renewed after removal, with the tip pointing in a specified direction.

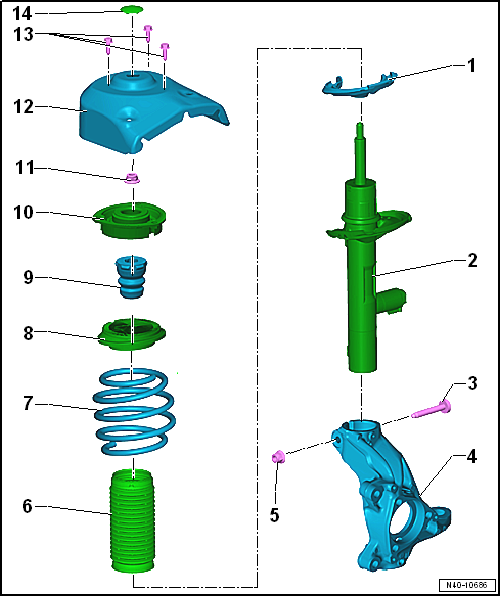

Assembly overview - suspension strut, upper suspension link

1 -  Spring seat
Note correct installation position
2 -  Shock absorber
Different versions are possible. Refer to → Electronic Parts Catalogue “ETKA”.
3 -  Bolt
Renew after removing
Tip of bolt must point in direction of travel.
70 Nm +180°
4 -  Wheel bearing housing
Different versions are possible. Refer to → Electronic Parts Catalogue “ETKA”.
5 -  Nut
Renew after removing
6 -  Protective sleeve
Different versions are possible. Refer to → Electronic Parts Catalogue “ETKA”.
7 -  Coil spring
Removing and installing → Chapter
Surface of spring coil must not be damaged.
Different versions are possible. Refer to → Electronic Parts Catalogue “ETKA”.
8 -  Deep groove ball thrust bearing
9 -  Bump stop
Different versions are possible. Refer to → Electronic Parts Catalogue “ETKA”.
10 -  Suspension strut mounting
Note correct installation position → Anchor.
11 -  Nut
Renew after removing
60 Nm
12 -  Front body
13 -  Bolt
Renew after removing
15 Nm +90°
14 -  Cover
