| Special tools and workshop equipment
required |
|
|
|
| |
Torque wrench -V.A.G 1783- |
 Note
| Removal and installation is described for the front bracket
on the driver side. Follow same instructions for the front
passenger side as appropriate. |
| – |
Remove centre console trim in footwell on driver side
→ Chapter. |
|
|
|
| – |
Push floor covering in area of front bracket
-2- aside. |
| – |

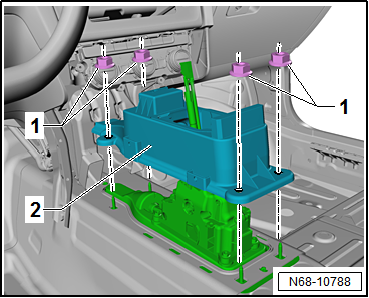

Release cover -1- from front
bracket -2- and remove it. |
| – |
Remove front bracket -2-
upwards from tunnel -3-. |
| Securing bracket and insulation for selector mechanism |
| – |
Remove centre console
→ Chapter. |
|
|
|
| – |

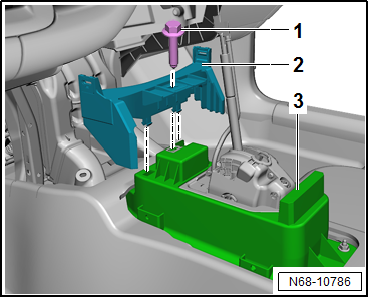

Remove securing bracket -2-
upwards from selector mechanism insulation
-3-. |
| – |
Remove air duct vent at rear of centre console
→ Heating, air conditioning; Rep. gr.87. |
|
|
|
| – |
Remove selector mechanism insulation
-2-. |
Note
| Before installing, check all fasteners for damage and renew
if necessary. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - centre console, e-Golf“ |
|
|
|
