Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing mirror trim

Using torque wrench -V.A.G 1783-, this page covers removing the Volkswagen Golf Mk7 left mirror trim (right side is similar) — remove the mirror glass and cover first, then unbolt the trim itself.

Special tools and workshop equipment required



Torque wrench -V.A.G 1783
Torque wrench -V.A.G 1783
  Note
Removal and installation are described only for the left mirror trim. The right side is similar.

Removing and installing mirror trim

Removing
–  Remove mirror glass → Chapter.
–  Remove mirror cover → Chapter.

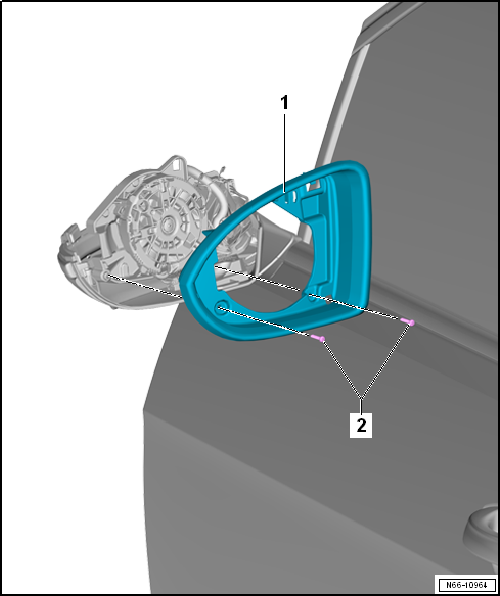

–  Remove bolts -2-.
–  Release mirror frame -1- from catches.
Installing
Install in the reverse order of removal observing the following:
–  Then check function.
Specified torques
  Bolts → Item

    Questions & answers

    Removing and installing mirror trim — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 mirror trim panel?
    Remove the mirror from the door, unbolt the trim from the mirror mounting with torque wrench -V.A.G 1783- and detach.
