 Note
| Removal and installation are described for the left
vehicle side. Follow same instructions for the right side as
appropriate. |
| Special tools and workshop equipment
required |
|
|
|
| |
|
Wedges -T10383 |
| – |
Remove rear bench seat
→ Chapter. |
| – |

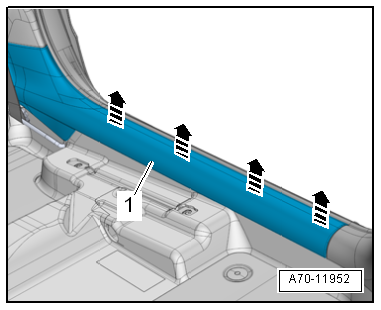

Release sill panel moulding -1-
from side member and beading of door seal
-arrows- using wedge -T10383-. |
|
|
|
| – |

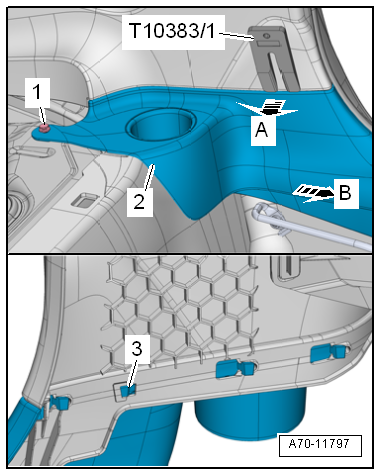

Remove spreader clip -1-. |
| – |
Release locking lug -3- of sill
panel moulding from side trim panel -arrow
A- using wedge -T10383-. |
| – |
At the same time, pull sill panel moulding
-2- towards front off side trim
panel -arrow B-. |
| – |
Remove sill panel moulding. |
Note
-
| |
Before installing, check all fasteners for damage and
renew if necessary. |
-
| |
Remove any retaining clips left in body mountings
using removal tool -T40280- and fit them in sill panel
moulding for installation. |
-
| |
Following installation, ensure that the sill panel
moulding is positioned in the door seal beading. |
| Installation is carried out in reverse order. |
|
|
|
Questions & answers
Removing and installing sill panel moulding, 2-door model — Volkswagen Golf Mk7
How do I remove the Golf Mk7 2-door sill panel moulding?
Left side described; right similar. Release clips and pull the moulding off the sill.
1 -
Foot rest
Removing and installing
→ Chapter
2 -
Bolt
2 Nm
3 -
Nut
Qty. 3
...
Note
Removal and installation are described for the left vehicle
side. Follow same instructions for the right side as
appropriate.
...
