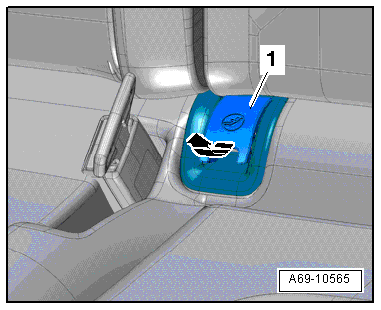

Unclip cover -1- from ISOFIX
child seat anchor -arrow- and
remove it. |
|
|
|
| – |

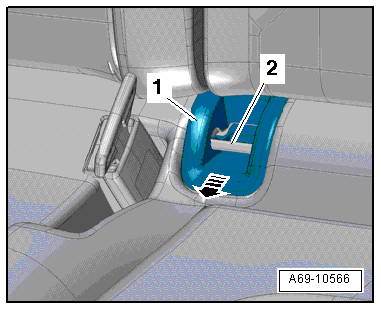

Push guide -1- downwards out of
recess and detach it from ISOFIX child seat anchor
-2-. |
| – |
Remove guide -arrow- towards
front. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - rear child seat anchors“ |
|
|
|
Questions & answers
Removing and installing guide for ISOFIX child seat anchor — Volkswagen Golf Mk7
How do I remove the Golf Mk7 ISOFIX guide?
Unclip the cover, push the guide downward out of its recess, and detach from the ISOFIX anchor.
1 -
ISOFIX child seat anchor
Qty. 4
Welded to underbody
2 -
Guide
For ISOFIX child seat anchor
Qty. 4
Removing and installing ...
Special tools and workshop equipment
required
Wedges -T10383
...
