Note
| After every brake pad change, depress brake pedal firmly several
times with vehicle stationary, so that brake pads are properly seated in
their normal operating position. |
| Use the brake filling and bleeding equipment -VAS 5234- to draw off
brake fluid from the brake fluid reservoir. |
| Before removing a brake caliper or disconnecting a brake hose, fit
brake pedal depressor -V.A.G 1869/2- (when doing this, release pressure
in system). |
| Always renew on both sides of an axle. |
| Unscrew brake caliper prior to removing. |
| Never remove brake discs from wheel hub by force. If necessary use
penetrating fluid, because otherwise brake discs can be damaged. |
| Thickness: 12 mm not including backplate. |
| Wear limit: 2 mm not including backplate. |
| Checking thickness
→ Booklet. |
| Always renew on both sides of an axle. |
| Removing and installing
→ Chapter |
| Do not disconnect brake hose when changing pads. |
| Removing and installing
→ Chapter |
| 8 - |
Brake hose with banjo union and banjo bolt |
| 9 - |
Wheel hub with wheel bearing |
| Removing and installing
→ Running gear, axles, steering; Rep. gr.40 |
| 12 - |
Wheel bearing housing |
| With integrated brake carrier. |
| Lightly grease guide surfaces with lithium grease -G 052 150 A2-. |
| Before inserting sensor, clean inner surface of hole and coat with
high-temperature paste -G 052 112 A3-. |
| 14 - |
Hexagon socket head bolt |
Questions & answers

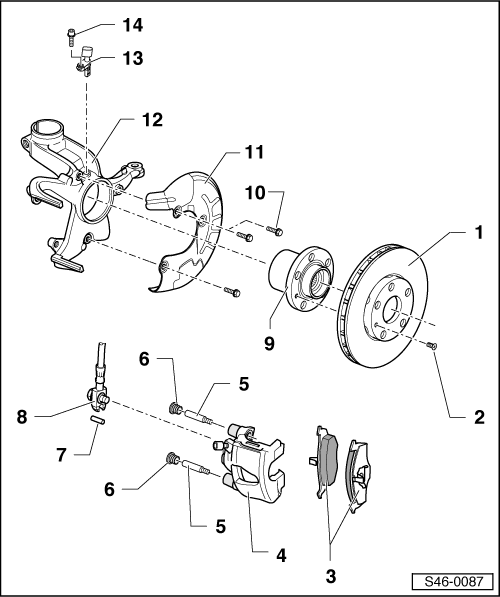

Assembly overview - FS III front brake — Volkswagen Golf Mk7
What does the Golf Mk7 FS III front brake assembly show?
Brake caliper, guide pins, pads with wear indicator, disc, mounting bracket, pad retaining spring and bolt torques.
