Note
| Removal and installation are described only for the left side.
Removal and installation of the right side are similar. |
| – |

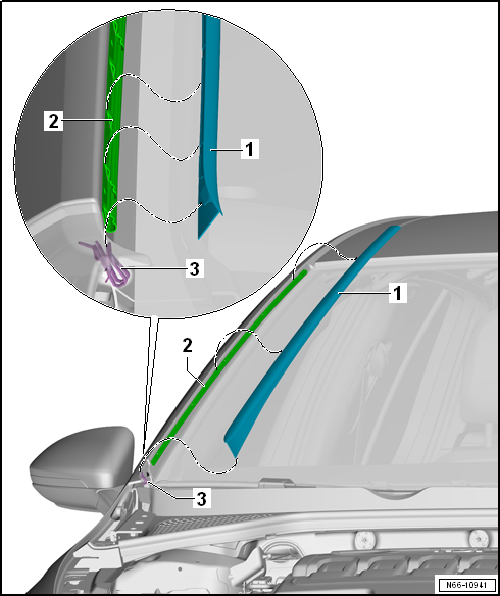

Starting at bottom end, pull water deflector
-1- out of clip -3- and retaining
strip -2-. |
| – |
Position upper inner edge of water deflector
-1- on upper edge of windscreen. |
| – |
Press water deflector -1- from above
into retaining strip -2- and clip
-3-. |
| – |
Fit contact lip between water deflector and windscreen behind
window. |
Questions & answers
Removing and installing water deflector — Volkswagen Golf Mk7
How do I remove the Golf Mk7 water deflector?
Starting at the bottom, pull the retaining strip end out and peel the deflector upward out of its clips. Procedure is mirrored left-to-right.
