Note
| On vehicles with a flap for the charging bay in the radiator grille,
the connector must be disconnected first. |
| – |

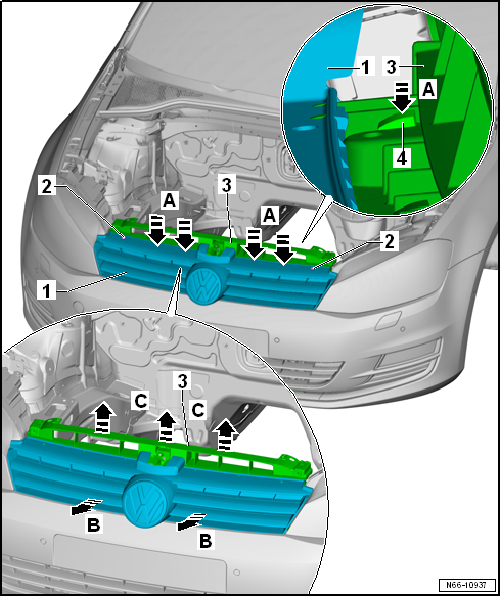

Release catches -4- using a small
screwdriver -arrow A-. |
| – |
Pull radiator grille -1- in parallel
out of lock carrier catches -3- in
-direction of arrow B-. |
| – |
Pull out radiator grille -1- upwards
-arrow C- from front bumper cover. |
| On vehicles with a flap for the charging bay in the radiator grille,
the connector must be disconnected. |
| – |

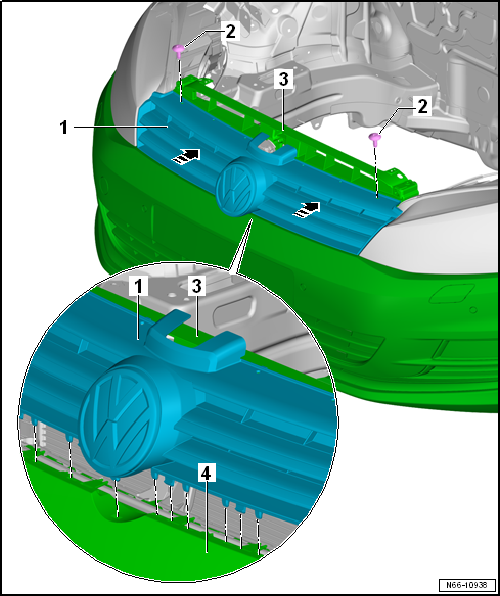

Insert radiator grille -1- into front
bumper cover -4-. |
| – |
Clip radiator grille -1- into lock
carrier -3- in
-direction of arrow- by applying slight pressure. |
| On vehicles with a flap for the charging bay in the radiator grille,
the connector must be connected. |
Note
| Alignment to VW emblem cutout in bonnet. |
| |
Bolts on radiator grille
→ Item |
Questions & answers
Removing and installing radiator grille — Volkswagen Golf Mk7
How do I remove the Golf Mk7 radiator grille?
Remove the mounting bolts, release the catches with a small screwdriver, and pull the grille forward. On e-Golf models, disconnect the charging flap connector first.
Does the Golf Mk7 radiator grille removal require special tools?
No. A small screwdriver for the catches and a standard socket or Torx for the bolts are sufficient.
1 -
Flap for charging bay
Removing and installing
2 -
Bolt
For actuator
2 Nm
Qty. 3
3 -
Actua ...
Removing
–
Removing radiator grille
→ Chapter
–
Remove bolts -2-.
...
