WARNING
| |
Observe safety instructions for pyrotechnic
components
→ Chapter. |
| |
Observe the additional safety regulations for the
side airbag
→ Chapter. |
| |
Observe disposal regulations for pyrotechnic
components
→ Chapter. |
|
|
|
|
| – |
For “e-Golfs” or “Golf GTEs”, disconnect the maintenance
connector for high-voltage system -TW-. |
| – |
Disconnect battery earth cable with ignition switched on
→ Electrical system; Rep. gr.27. |
| – |
Remove side padding
→ Chapter. |
|
|
|
| – |

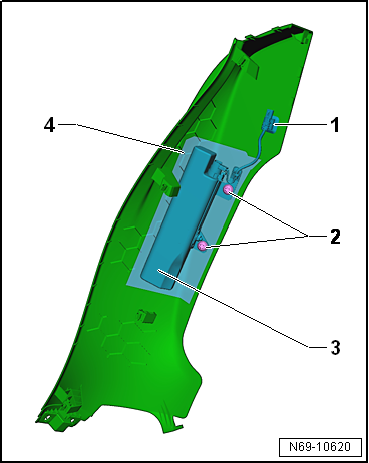

Remove the 2 bolts -2-. |
| – |
Unclip connector -1- from seat
bolster. |
| – |
Remove side airbag -3- from
airbag pocket -4-. |
| – |
Install in reverse order of removal. |
WARNING
| Ensure that nobody is in vehicle. |
|
|
|
|
| – |
For “e-Golfs” or “Golf GTEs”, connect the maintenance
connector for high-voltage system -TW-. |
| – |
Connect vehicle battery
→ Electrical system; Rep. gr.27. |
WARNING
| If the ignition has not yet been switched on after
the battery has been reconnected “warning lamps in dash
panel insert are off”, the ignition (key or button) must
only be switched on while sitting on the driver seat and
with the seat set to rearmost position. |
|
| |
→ Chapter „Assembly overview - rear side airbag“ |
|
|
|
