Using engine and gearbox support -VAS 6095- and workshop hoist -VAS 6100-, this page covers mounting the Volkswagen Golf Mk7 1.4 TSI engine for bench-level repair once the gearbox is detached.
| Special tools and workshop equipment
required |
|
|
|

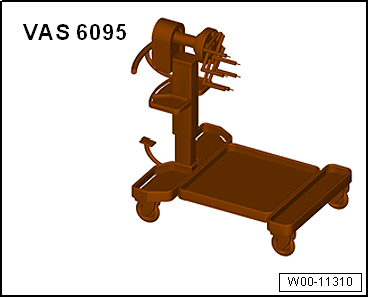

| Engine and gearbox support -VAS 6095- |
|
|
|

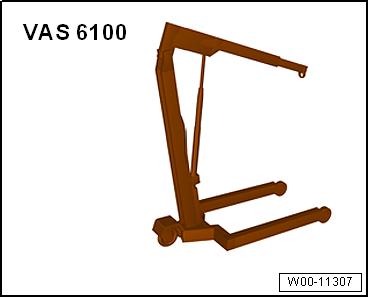

| Workshop hoist -VAS 6100- |
| Gearbox detached from engine
→ Chapter. |
|
|
|
| – |

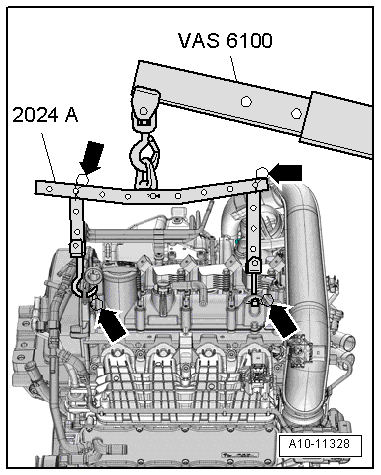

Attach lifting tackle -2024 A- on engine and workshop hoist
-VAS 6100- as shown in illustration. |
 Note
| In order to match the lifting tackle to the centre of
gravity of the engine, the holes in the hook rail must be
allocated as shown in the illustration. |
| The support hooks and retaining pins on the lifting tackle
must be secured with locking pins -arrows-. |
| – |
Lift engine off T10497 using workshop hoist -VAS 6100-. |
|
|
|
| – |

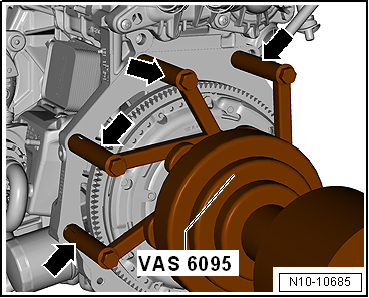

Secure engine with pins -arrows-
on engine and gearbox support -VAS 6095- as shown in
illustration. |
|
|
|
