Drain coolant
→ Chapter. |
| – |
Remove intake manifold
→ Chapter. |
|
|
|
| – |

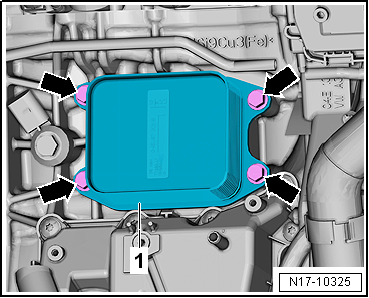

Unscrew bolts -arrows- and
detach engine oil cooler -1-. |
| Installation is carried out in the reverse order; note the
following: |
| – |
Install intake manifold
→ Chapter. |
| – |
Replenish coolant
→ Anchor. |
| → Chapter „Assembly overview - engine oil cooler“ |
| → Chapter „Assembly overview - ignition system“ |
|
|
|
Questions & answers
Removing and installing engine oil cooler — Volkswagen Golf Mk7
How do I remove the Golf Mk7 1.4 TSI oil cooler?
Drain coolant and oil from the cooler area, unbolt from the filter housing and remove. Renew the gasket.
1 -
Engine oil cooler
See note
→ Chapter
Removing and installing
→ Chapter
Change coolant af ...
