Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - front vehicle level senders
Note: the front left/right vehicle level sender -G78-/-G289- is only available as a replacement part complete with its coupling rod and retaining plates — this assembly overview maps the full unit.
Note| The front left/right vehicle level sender -G78/G289- is only available as a replacement part complete with coupling rod and upper and lower retaining plates. |

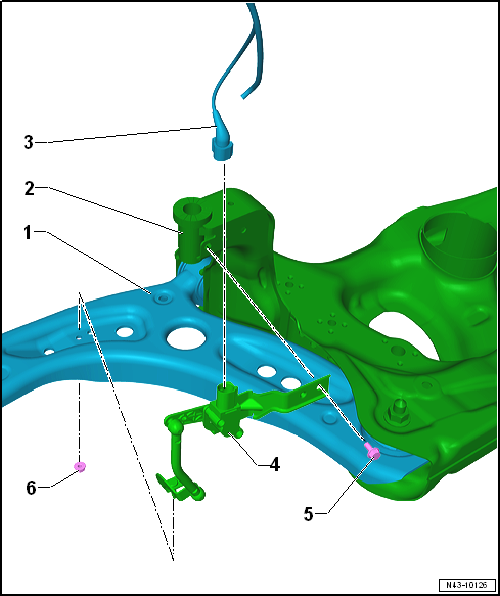

| 1 - | Suspension link |
| 2 - | Subframe |
| 3 - | Electrical connector |
| 4 - | Front left vehicle level sender -G78- and front right vehicle level sender -G289- |
| Complete with attachments |
| Lever must face outwards |
| Removing and installing → Chapter |
| Carry out basic setting of headlights → Electrical system; Rep. gr.94 |
| 5 - | Bolt |
| 8 Nm |
| 6 - | Nut |
| Renew after removing |
| 8 Nm |
Questions & answers
Assembly overview - front vehicle level senders — Volkswagen Golf Mk7
What does the Golf Mk7 front vehicle level sender assembly show?
Sender -G78-/-G289- mounted on the subframe, connected to the lower control arm by a link rod. Measures suspension travel for DCC damper control.
Assembly overview - rear vehicle level sender, torsion beam axle
Note
The rear left vehicle level sender -G76- is only available as a
replacement part complete with coupling rod and upper and lower
retaining plates.
1&nb ...
