Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - steering column trim

This assembly overview covers the Volkswagen Golf Mk7 steering column trim: the gap cover, upper trim (which must click audibly into place) and lower trim, secured with 2.5 Nm bolts.

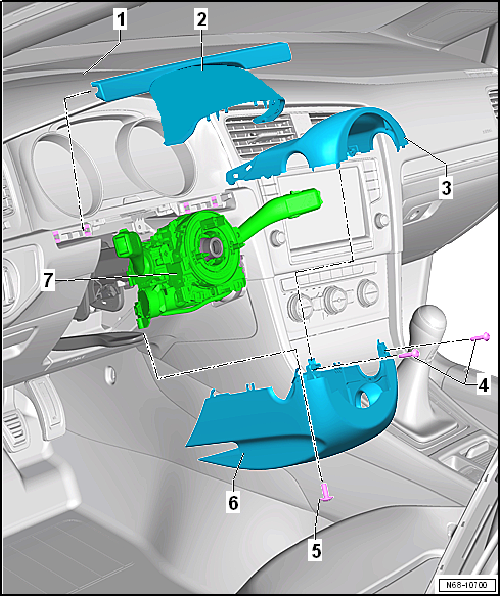

Assembly overview - steering column trim

1 -  Dash panel
  • Assembly overview → Chapter
2 -  Gap cover
  • Removing and installing → Chapter
3 -  Upper steering column trim
  • Removing and installing → Chapter
  • Press until it audibly engages
4 -  Bolt
  • Qty. 2
  • 2.5 Nm
5 -  Bolt
  • 2.5 Nm
6 -  Lower steering column trim
  • Removing and installing → Chapter
7 -  Steering column switch module
  • Assembly overview → Electrical system; Rep. gr.94
