Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - door

This assembly overview covers the Volkswagen Golf Mk7 rear door (left side shown; right is similar), noting that after B-pillar renewal, the specified torque for several hinge bolts changes from the standard values.

  Note
  Only the left side is shown. The right side is similar.
  After renewal of B-pillar, the specified torque for bolts -2 and 5- as well as for -14 and 17- changes.

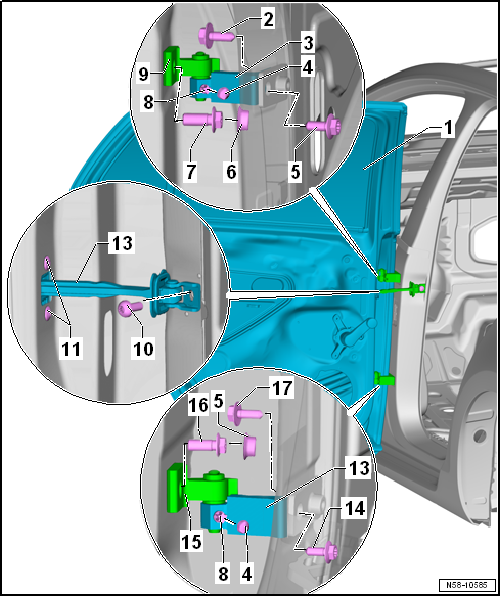

Assembly overview - door

1 -  Rear door
  • Removing and installing → Chapter
  • Adjusting → Chapter
2 -  Bolt
  • Loosening once to adjust door is allowed, afterwards renew always
  • Installed from inside vehicle
  • To remove and install, B-pillar lower trim must be removed first
  • 50 Nm
  Note
  After renewal of A-pillar the specified torque changes.
  Specified torque after renewal of A-pillar: 20 Nm + 90°
3 -  Door hinge
  • The hinge is split
  • Lower part is secured to hinge upper part with bolt -8-
4 -  Cap
  • For bolt -8-
5 -  Bolt
  • Loosening once to adjust door is allowed, afterwards renew always
  • Installed from inside vehicle.
  • To remove and install, B-pillar lower trim must be removed first.
  • 50 Nm
  Note
  After renewal of A-pillar the specified torque changes.
  Specified torque after renewal of A-pillar: 20 Nm + 90°
6 -  Cap

For bolt -7-

7 -  Bolt
  • Always renew, loosening it once to adjust door is allowed.
  • 50 Nm
8 -  Bolt
  • Connects upper part of hinge to bottom part of hinge
  • 23 Nm
9 -  Door hinge
  • The hinge is split
  • Upper part is secured to hinge lower part with bolt -8-
10 -  Bolt
  • 30 Nm
11 -  Bolt
  • Qty. 2
  • 9 Nm
12 -  Door arrester
  • Removing and installing → Chapter
13 -  Door hinge
  • The hinge is split
  • Lower part is secured to hinge upper part with bolt -8-
14 -  Bolt
  • Loosening once to adjust door is allowed, afterwards renew always
  • Installed from inside vehicle
  • To remove and install, B-pillar lower trim must be removed first.
  • 50 Nm
  Note
  After renewal of A-pillar the specified torque changes.
  Specified torque after renewal of A-pillar: 20 Nm + 90°
15 -  Door hinge
  • The hinge is split
  • Upper part is secured to hinge lower part with bolt -8-
16 -  Bolt
  • Always renew, loosening it once to adjust door is allowed
  • 50 Nm
17 -  Bolt
  • Loosening once to adjust door is allowed, afterwards renew always
  • Installed from inside vehicle
  • To remove and install, B-pillar lower trim must be removed first
  • 50 Nm
  Note
  •   After renewal of A-pillar the specified torque changes.
  •   Specified torque after renewal of A-pillar: 20 Nm + 90°
