 Note
| Removal and installation are described for the left vehicle
side. Follow same instructions for the right side as
appropriate. |
| Special tools and workshop equipment
required |
|
|
|
| |
|
Removal wedge -3409 |
| – |
Remove front seat
→ Chapter. |
| – |

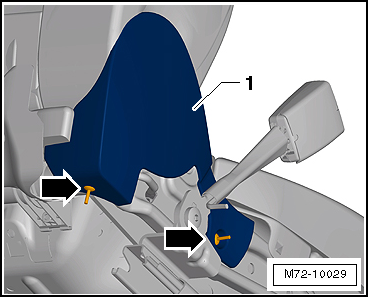

Remove spreader rivets -arrows-
of trim -1-. |
| – |
To do this, press clamping pins in spreader rivets
-arrows- inwards. |
| – |
Lever off spreader rivets -1-
using removal wedge -3409-. |
|
|
|
| – |

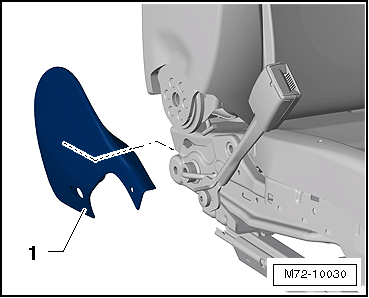

Remove trim -1- from mountings
in seat frame. |
|
|
|
| Install in reverse order, but note the following: |
| – |
Insert spreader rivets -arrows-
and press in clamping pins. |
| |
→ Chapter „Assembly overview - front seat“ |
|
|
|
