| Special tools and workshop equipment
required |
|
|
|
 Note
| Removal and installation are described only for the left
mirror glass. The right side is similar. |
|
|
|
Removal lever -80-200-
 WARNING
| When doing this repair work, always wear safety goggles and
leather gloves! |
|
| – |
Protect housing edges to prevent damage to paintwork with, for
example, textile-reinforced tape. |
| – |
Press bottom of mirror glass -1- into
mirror housing. |
| – |

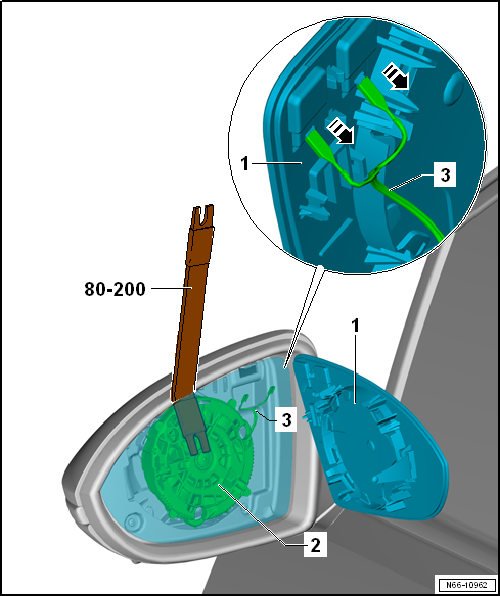

Press mirror glass -1- off adjuster
unit -2- using the removal lever -80-200-. |
| – |
Swivel mirror glass -1- to side and
detach connectors -3- for electric mirror
heating on back of mirror glass -1-. |
| – |
Fit connector contacts -3- on
mirror glass -1-. |
| – |
Push mirror glass -1- centrally
onto adjustment unit -2- in
housing. |
| Mirror glass engages audibly. |
Note
| When fitting the mirror glass, only press on the centre of
the mirror. |
|
Questions & answers
Removing and installing mirror glass — Volkswagen Golf Mk7
How do I replace the Golf Mk7 mirror glass?
Tilt the existing glass fully, insert a flat tool behind it, lever it off the adjustment clips, disconnect the heating connector (if fitted) and clip the new glass on.
