Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - D-pillar trim
This assembly overview covers the Volkswagen Golf Mk7 estate D-pillar trim, left side shown (right is a mirror image), with its retaining clip — renew any clips left in the body mounting after removal.

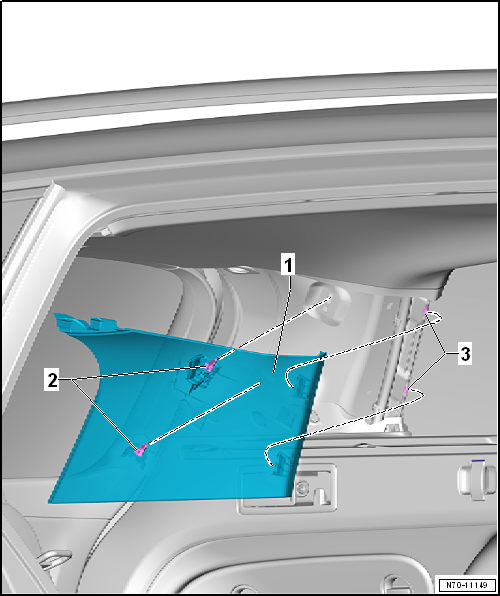

Note| The illustration shows the D-pillar trim on the left side. The right-hand side is similar (mirror image of left-hand side). |
| 1 - | D-pillar trim |
- Removing and installing → Chapter
| 2 - | Retaining clip |
- Insert into trim
- Remove any retaining clips left in body mountings using removal tool -T40280
- Renew any damaged or deformed retaining clips
| 3 - | Retaining clip |
- Insert in D-pillar
- Always renew retaining clips
Questions & answers
Assembly overview - D-pillar trim — Volkswagen Golf Mk7
What does the Golf Mk7 D-pillar trim assembly show?
The D-pillar trim (estate only), clips and mounting points. Left shown; right is mirror image.
