Volkswagen Golf Mk7 Service & Repair Manual: Overview - rear axle, multi-link suspension, four-wheel drive
This overview indexes the 4MOTION multi-link suspension rear axle component groups — identical structure to the front-wheel-drive version, with drivetrain-specific detail differences.

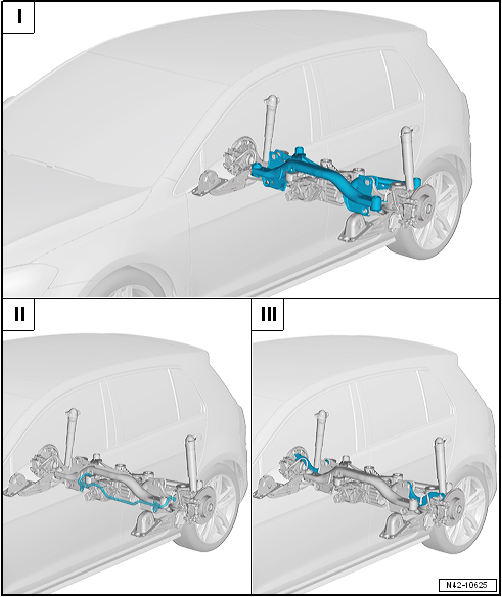

| I - | → Chapter „Subframe“ |
| II - | → Chapter „Anti-roll bar“ |
| III - | → Chapter „Suspension link, track rod“ |

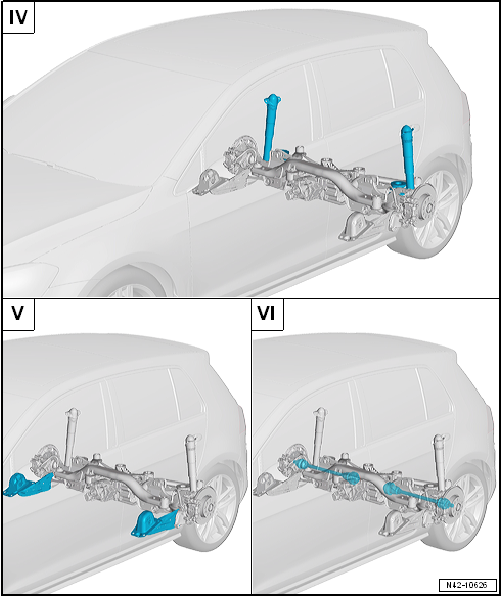

| IV - | → Chapter „Suspension strut, shock absorber, spring“ |
| V - | → Chapter „Wheel bearing assembly, trailing arm“ |
| VI - | → Chapter „Drive shaft“ |
Questions & answers
Overview - rear axle, multi-link suspension, four-wheel drive — Volkswagen Golf Mk7
How does the Golf Mk7 4MOTION rear multi-link differ?
Additional rear differential, prop shaft connection and modified subframe to accommodate the rear drive unit.
