Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - coolant pipes

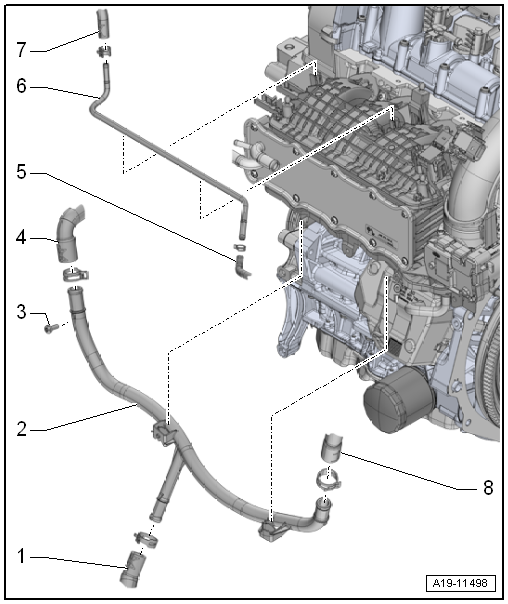

This assembly overview covers the Volkswagen Golf Mk7 coolant pipes: a pipe clipped onto the underside of the intake manifold, an 8 Nm bolt, and a coolant line similarly clipped in place.
| 1 - | Coolant hose |
| 2 - | Coolant pipe |
| Clipped onto intake manifold (bottom) |
| To remove, remove intake manifold → Chapter. |
| 3 - | Bolt |
| 8 Nm |
| 4 - | Coolant hose |
| 5 - | Coolant hose |
| 6 - | Coolant line |
| Clipped onto intake manifold (top) |
| 7 - | Coolant hose |
| 8 - | Coolant hose |
