 Note
| The handbrake pedal travel must not be restricted by
additional floor coverings. |
| Do not lubricate or grease the pivot pin. The pivot pin must
remain dry. |
|
|
|

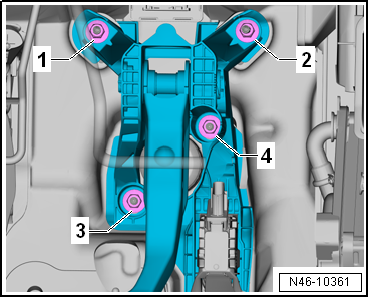

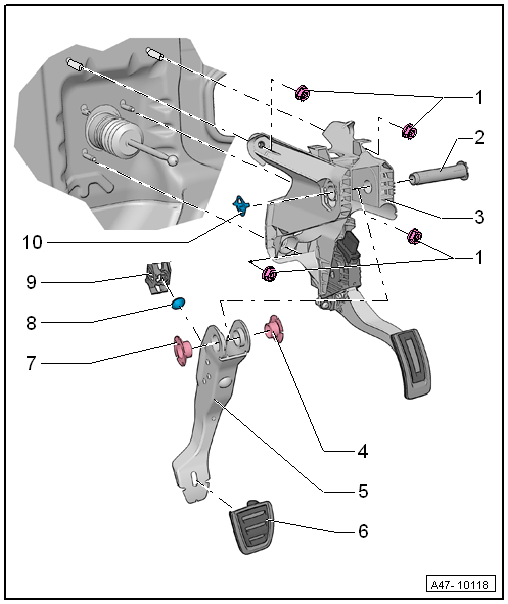

| 1 - |
Self-locking hexagon nut |
| Always renew after removing |
| To remove, remove mounting bracket first |
| Removal: turn pivot pin clockwise until pivot pin tabs break off |
| Do not lubricate or grease the pivot pin. The pivot pin must remain
dry. |
| Installation: Turn pivot pin anti-clockwise until tabs engage
audibly on stop. |
| 3 - |
Pedal cluster with mounting bracket |
| Removing and installing
→ Chapter |
| Cannot be renewed individually; ensure correct installation position |
| Separating brake pedal from brake servo
→ Chapter |
| Connecting brake pedal to brake servo
→ Chapter |
| Removing and installing
→ Chapter |
| Cannot be renewed individually; ensure correct installation position |
| For ball head of brake servo plunger rod. |
| Insert into both holes in mounting bracket. |
