Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing front air distribution flap actuation unit, heater and air conditioning system with electric/manual controls, LHD vehicles

This page covers removing the LHD Volkswagen Golf Mk7 front air distribution flap actuation unit (electric/manual controls) — remove the dash panel and defroster vent air duct, then unbolt the control motor first.

Removing
–  Remove dash panel → General body repairs, interior; Rep. gr.70.
–  Remove the air duct for the defroster vent → Chapter.
–  Unbolt air distribution flap control motor → Chapter.

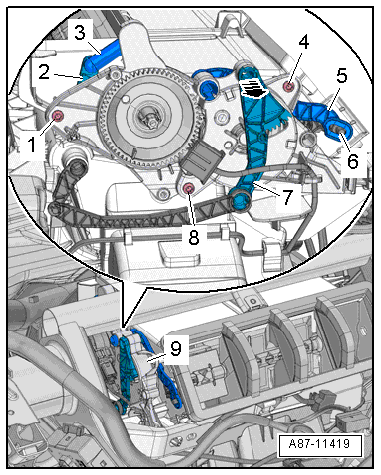

–  Carefully press off the actuating lever -7--arrow-.
–  Carefully press actuating lever -3- off defroster flap lever -2-.
–  Unscrew bolts -1-, -4- and -8-.
–  Remove actuation unit -9- upwards.
Installing
–  Installation is carried out in the reverse order. When installing, note the following:
  Note
Check operation of flaps and hinge mechanism before fitting.
Make sure levers and shafts are properly fitted in the mounts.


Removing and installing front air distribution flap actuation unit, heater and air conditioning system with electric/manual controls, LHD vehicles

–  Check for correct mutual positioning of the two gear wheels.
The rectangular tooth -2- must engage in the gap -3- at the gear wheel -1-.


Removing and installing front air distribution flap actuation unit, heater and air conditioning system with electric/manual controls, LHD vehicles

–  When fitting actuation unit, actuating lever -5- must engage in lever -6- of centre vent flap.
Specified torque
→ Chapter „Assembly overview - heater and air conditioning unit“
Dash panel; Assembly overview - dash panel → General body repairs, interior; Rep. gr.70.
  A87-11419
