Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear side windows

This assembly overview covers the Volkswagen Golf Mk7 rear side window, with its integral seal and the same PUR adhesive sealant bead cross-section (10 mm × 6.5 mm) used on the front side window.

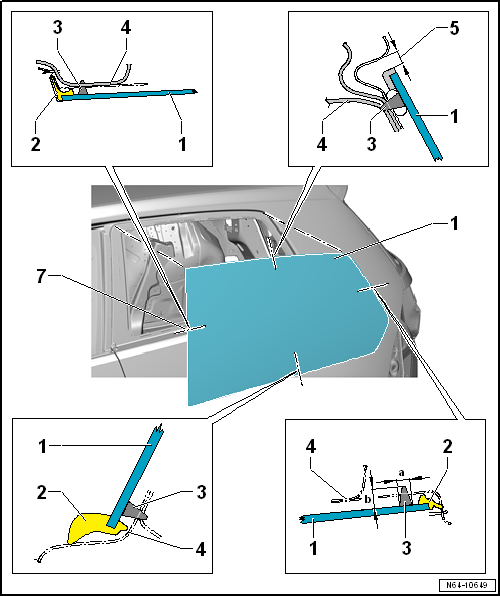

Assembly overview - rear side windows

1 -  Rear side window
q   Removing rear side window → Chapter
2 -  Seal
  • Integral part of rear side window
3 -  PUR adhesive sealant
  • Cross section of bead: height = 10 mm -dimension b-, width = 6.5 mm -dimension a- (including precoating, residual material on window glass and window flange).
  • Minimum curing period → Chapter
4 -  Body flange
5 -  Gap
  • Need to be carried out evenly
