Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing rear centre console vent duct

Shown for a left-hand drive vehicle, this page covers removing the Volkswagen Golf Mk7 rear centre console vent duct — remove the centre console first, noting a blanking cap is fitted on vehicles without rear vents.

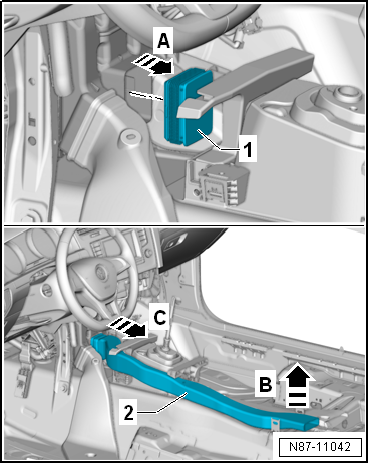

Note The illustration shows a left-hand drive vehicle. Removing –  Remove centre console → General body repairs, interior; Rep. gr.68.   Note If the vehicle is not provided with rear vents, a cap -1- is fitted on air distribution housing. Cap -1- is removed in -direction of arrow A-.

–  Swing air duct -2- upwards in -direction of arrow B-, pull it in -direction of arrow C- out of catches in air distribution housing and remove it. Installing Install in reverse order.
