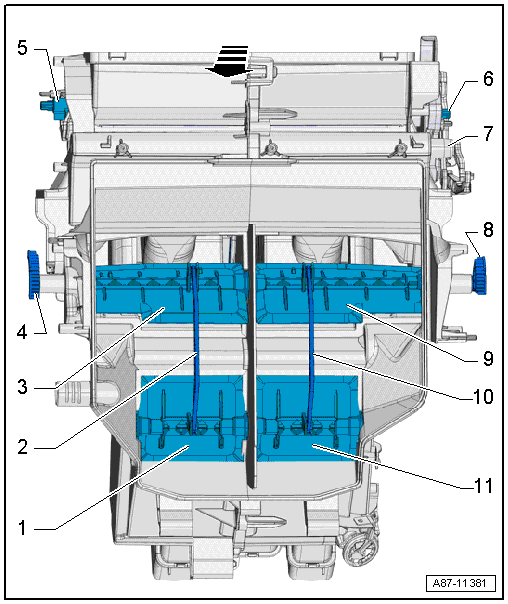

This assembly overview, shown for a left-hand drive vehicle viewed from the front, maps the internal flaps and partitions in the Volkswagen Golf Mk7 air distribution housing — including the right heated air flap.
 Note
| The illustration shows a left-hand drive vehicle. |
|
|
|
Note
| -Arrow- = Direction of travel |
| → Chapter „Assembly overview - heater and air conditioning unit“. |
| 1 - |
Right heated air flap |
| Activated via right cold air flap |
| Heater unit and air conditioning system with electric/manual
controls |
| Activated jointly via shaft of left cold air flap by temperature
flap control motor -V68- via left actuating lever |
| Activated by temperature flap control motor -V159- via right
actuating lever |
| 4 - |
Actuating lever on right of temperature control flap |
| Activated by temperature flap control motor -V159- |
| 5 - |
Actuating lever of flap for “defrost”. |
| To windscreen and door windows |
| Activated by defroster flap control motor -V107- |
| 6 - |
Actuating lever of flap for “defrost”. |
| To windscreen and door windows |
| Only heater unit and air conditioning system with electric/manual
controls. |
| Activated by air distribution flap control motor -V428- via
defroster and air distribution actuation unit |
| 7 - |
Air distribution flap actuating lever |
| Heater unit and air conditioning system with electric/manual
controls |
| Activated by air distribution flap control motor -V428- via
defroster and air distribution actuation unit |
| Activated by front air distribution flap control motor -V426- via
defroster and air distribution actuation unit |
| Heater unit and air conditioning system with electric/manual
controls |
| Activated by temperature flap control motor -V68- |
| Activated by temperature flap control motor -V158- |
| Heater unit and air conditioning system with electric/manual
controls |
| Activated by temperature flap control motor -V68- via left actuating
lever |
| Activated by temperature flap control motor -V158- via left
actuating lever |
| 11 - |
Left heated air flap |
| Activated via left cold air flap |
Note
| The illustration shows a left-hand drive vehicle. |
|
|
|
Note
| -Arrow- = Direction of travel |
| → Chapter „Assembly overview - heater and air conditioning unit“. |

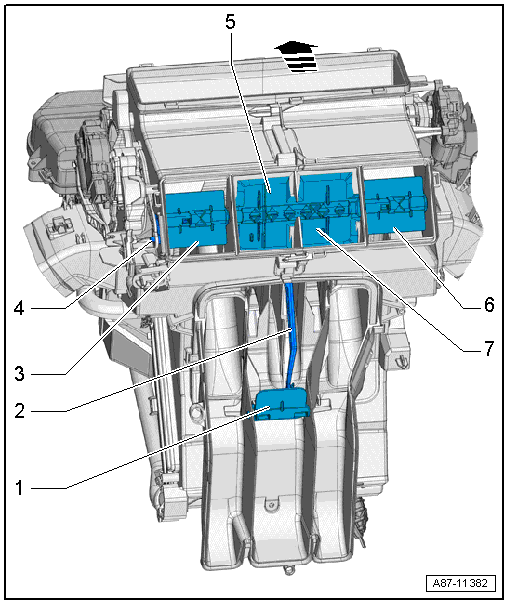

| 1 - |
Flap for rear air duct |
| Heater unit and air conditioning system with electric/manual
controls |
| The air duct is sealed with a plug |
| Not always fitted with heater unit and air conditioning system with
electric/manual controls depending on make (not needed as air duct is
sealed off). |
| Climatronic (depending on vehicle) |
| For rear vent in centre console. |
| Equipment version with Climatronic. |
| Not always fitted with heater unit and air conditioning system with
electric/manual controls -1-. |
| 3 - |
Left flap for left dash panel vent |
| For actuation of vent flaps |
| Activated via actuation unit
→ Item. |
| 5 - |
Left flap for centre dash panel vent |
| 6 - |
Right flap for right dash panel vent |
| 7 - |
Right flap for centre dash panel vent |
Questions & answers
Assembly overview - flaps and partitions in air distribution housing — Volkswagen Golf Mk7
What does the Golf Mk7 air distribution housing assembly show?
All internal flaps (temperature, distribution, defroster, footwell), partitions and their motor connections. LHD view; RHD is mirrored.
