Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - anti-roll bar, multi-link suspension, front-wheel drive

This assembly overview covers the FWD Volkswagen Golf Mk7 rear anti-roll bar: the lower transverse link, a nut torqued to 20 Nm plus 180°, and the coupling rod with its own removal chapter.

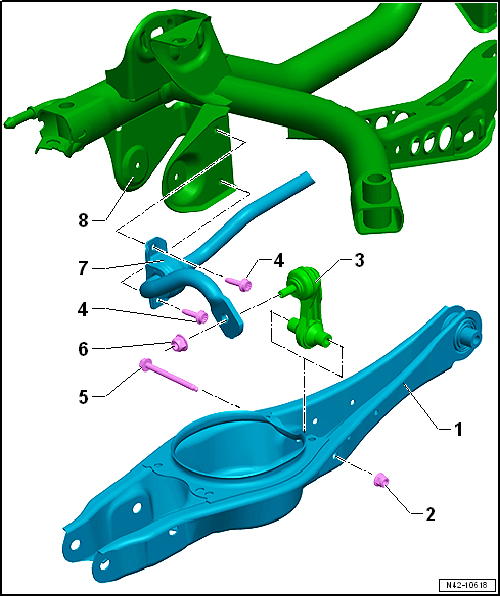

Assembly overview - anti-roll bar, multi-link suspension, front-wheel drive

1 -  Lower transverse link
2 -  Nut
Renew after removing
20 Nm +180°
3 -  Coupling rod
Removing and installing → Chapter
4 -  Bolt
Tighten evenly.
Renew after removing
20 Nm +90°
5 -  Bolt
Renew after removing
6 -  Nut
When tightening, counterhold at multi-point socket of coupling rod
55 Nm
7 -  Anti-roll bar
With rubber bushes
Removing and installing → Chapter
8 -  Subframe

    Questions & answers

    Assembly overview - anti-roll bar, multi-link suspension, front-wheel drive — Volkswagen Golf Mk7

    What does the Golf Mk7 FWD rear anti-roll bar assembly show?
    Bar, clamp bushes, mounting brackets on the subframe, coupling rod links and bolt torques.
