Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing dash panel cover on driver side

Using torque wrench -V.A.G 1783-, this page covers removing the Volkswagen Golf Mk7 driver-side dash panel cover — after removing the end cover, footwell cover and centre console cover on that side.

Special tools and workshop equipment required



Torque wrench -V.A.G 1783-
Torque wrench -V.A.G 1783-
Removing
–  Remove dash panel end cover on driver side → Chapter.
–  Remove driver side footwell cover → Chapter.
–  Remove centre console cover on driver side → Chapter.
–  Remove storage compartment on driver side → Chapter.

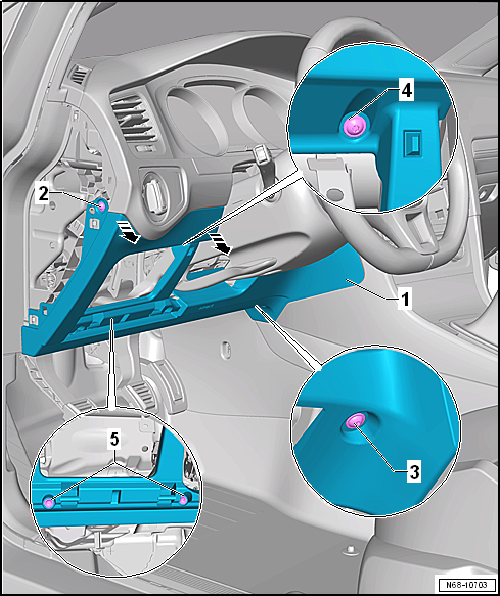

Removing and installing dash panel cover on driver side

–  Unscrew bolt -2- at side.
–  Unscrew bolt -3- at bottom.
–  Remove bolts -4- and -5-
–  Unclip dash panel cover on driver side -1- from dash panel -arrows- and remove it.

Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - driver side dash panel cover“
