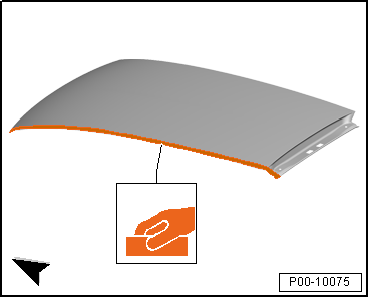

| Using P180-grade sandpaper, dry-sand cathodic dip primer on
bonding surface for roof
→ Item down to bare metal. |
|
|
|
| – |

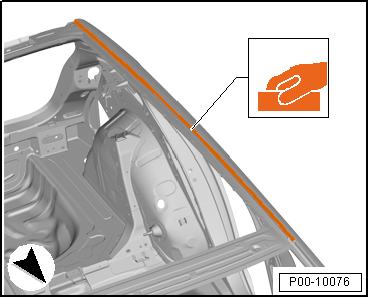

Using P180-grade sandpaper, dry-sand bonding surface for
roof pillars
→ Item down to bare metal. |
 Note
| Prime any bare metal surfaces outside the bonding surface
→ Item using 2-pack wash primer -LHV 043 000 A2-, and
then apply 2-pack HS Performance surfacer. |
| – |
Clean bonding area using silicon remover. |
| – |
Renew roof
→ Body - centre, roof, frame; Rep. gr.51. |
|
|
|

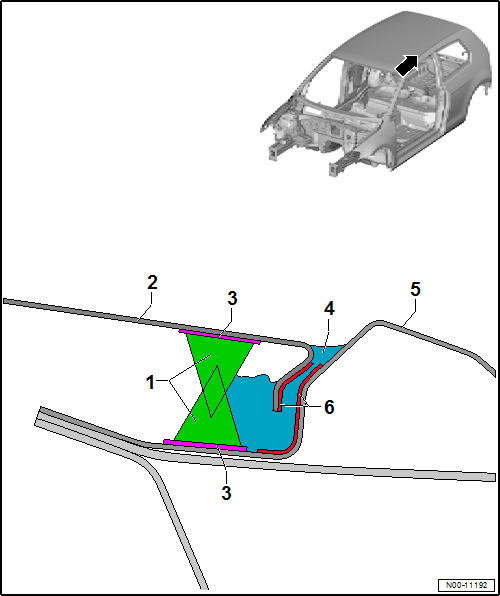

| 1 - |
2-pack glass adhesive |
| 3 - |
Glass and paint primer |
| 5 - |
Roof pillar/side panel |
| 6 - |
Area sanded down to bare metal |
Questions & answers
Pre-treatment of bonded surfaces when renewing laser-welded roofs — Volkswagen Golf Mk7
How do I prepare bonding surfaces when replacing a Golf Mk7 laser-welded roof?
Dry-sand the cathodic dip primer to bare metal with P180 sandpaper, then apply the specified primer before bonding.
Note
The structure of the underbody and stone chip protection is
to be reconstructed to conform to the original condition in
appearance an ...
Note
The corrosion protection measure is to be carried out in the groove
of the wing of all new replacement parts which have not had the
additional sealant applied ...
