| In vehicles with start-stop system, note abort conditions:
→ Chapter |
|
|
|

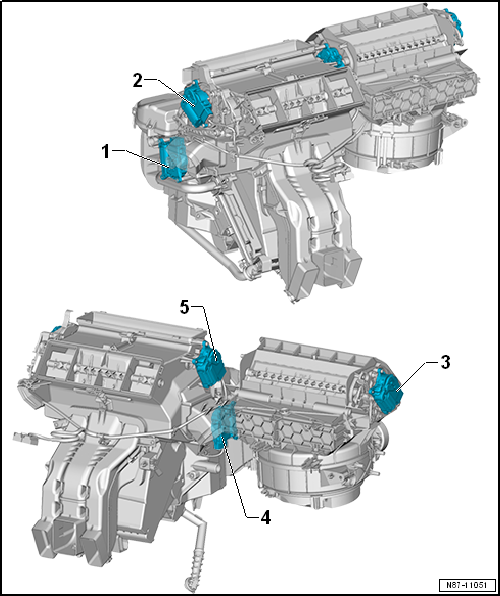

| 1 - |
Left temperature flap control motor -V158- |
| With potentiometer for left temperature flap control motor -G220-. |
| Checking: with vehicle diagnostic tester |
| Removing and installing
→ Chapter. |
| Renewing: initiate basic setting using vehicle diagnostic tester. |
| 2 - |
Front air distribution flap control motor -V426- with potentiometer
for front air distribution flap control motor -G642- |
| With potentiometer for front air distribution flap control motor
-G642-. |
| Checking: with vehicle diagnostic tester |
| Removing and installing
→ Chapter. |
| Renewing: initiate basic setting using vehicle diagnostic tester. |
| 3 - |
Control motor for fresh air and air recirculation flap and air flow
flap -V425- |
| With potentiometer for fresh air/recirculated air and air flow flap
control motor -G644-. |
| Checking: with vehicle diagnostic tester |
| Removing and installing
→ Chapter. |
| Renewing: initiate basic setting using vehicle diagnostic tester. |
| 4 - |
Right temperature flap control motor -V159- |
| With potentiometer for right temperature flap control motor -G221- |
| Checking: with vehicle diagnostic tester |
| Removing and installing
→ Chapter. |
| Renewing: initiate basic setting using vehicle diagnostic tester. |
| 5 - |
Defroster flap control motor -V107- |
| With potentiometer for defroster flap control motor -G135-. |
| Checking: with vehicle diagnostic tester |
| Removing and installing
→ Chapter. |
| Renewing: initiate basic setting using vehicle diagnostic tester. |
