Remove sump (bottom section)
→ Chapter. |
|
|
|
| – |

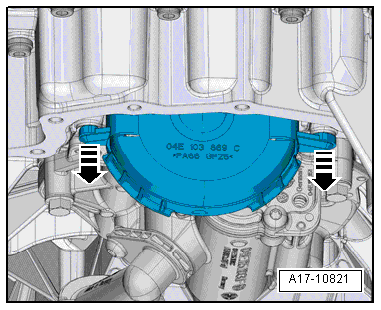

Unclip cover for oil pump drive sprocket
-arrows-. |
|
|
|
| – |

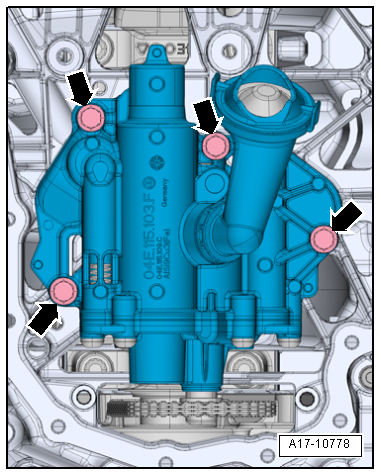

Guide out oil pump with drive sprocket under drive chain. |
| – |

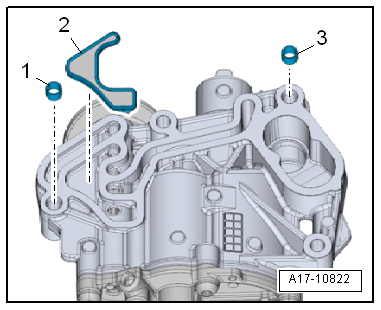

Check that dowel sleeves -1, 3-
are fitted in oil pump. |
|
|
|
| – |
Fit seal with strainer -2- in
oil pump. |
| Installation is carried out in the reverse order; note the
following: |
| – |
Turn oil pump drive sprocket by hand to check oil pump for
ease of movement. |
 Note
| – |
Fit oil pump with drive sprocket into drive chain and
secure. |
| – |
Install lower part of sump
→ Chapter. |
| – |
Replenish engine oil and check oil level
→ Booklet. |
| → Chapter „Assembly overview - sump and oil pump“ |
|
|
|
