| Special tools and workshop equipment
required |
|
|
|
|
|
|
Torque wrench -V.A.G 1783- |
| – |
Remove glass panel
→ Chapter. |
| – |
If drive is defective, remove glass panel
→ Chapter. |
| – |
Pull self-adhesive insulation -3- off. |
| – |
Pull out cover upwards at an angle -arrows-. |
 WARNING
| Remove or install drive for panorama tilting
sunroof glass panel only when sunroof is closed ("0" position ). |
| The requirements for removing and installing drive
are: Engine not running and ignition off, key not in ignition
and door open. |
|
| – |
Switch engine and ignition off, remove key and open door. |
| l |
This situation must be maintained until drive has been installed. |
| – |

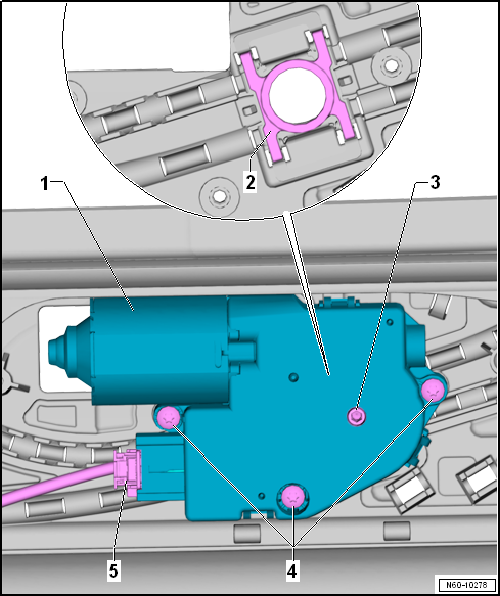

Remove bolts -4- and pull off drive for
panorama tilting roof -1-. |
| – |
Detach drive connector -5-. |
Note
| The bolts for the drive are microencapsulated and must always be
renewed. |
| – |
Plug in connector -5- at drive
-1-. |
| – |
Check that the clips -2- are correctly
seated. |
| – |
Attach drive -1- and tighten bolts
-4-. |
| – |
After installation, the key can be inserted in ignition and starter
switch again. |
| – |
Then test for proper function. |
| – |
Push cover onto assembly frame. |
| – |
Attach self-adhesive insulation -3-. |
| |
Sliding sunroof adjustment control unit -J245-
→ Chapter |
