Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - lower suspension link, swivel joint
This assembly overview covers the Volkswagen Golf Mk7 wheel bearing housing and lower suspension link: a nut always renewed after removal, torqued to 60 Nm, and the swivel joint itself.

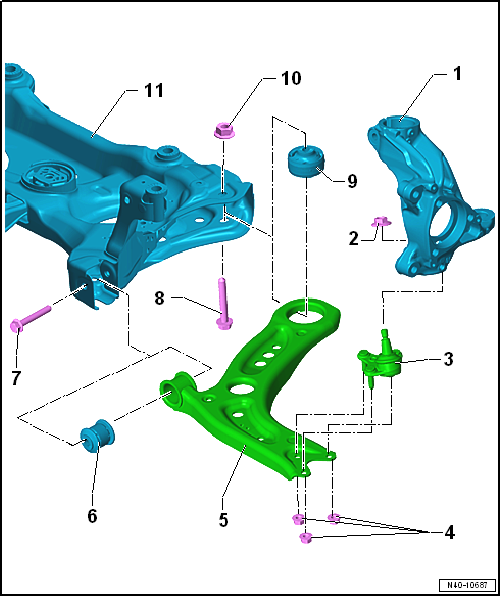

| 1 - | Wheel bearing housing |
| Different versions possible. Refer to → Electronic Parts Catalogue “ETKA” |
| Removing and installing → Chapter |
| 2 - | Nut |
| Renew after removing |
| 60 Nm |
| 3 - | Swivel joint |
| Removing and installing → Chapter |
| 4 - | Nut |
| Renew after removing |
| Tighten in unladen position → Chapter. |
| 40 Nm +45° |
| 5 - | Lower suspension link |
| Removing and installing → Chapter |
| 6 - | Front bonded rubber bush |
| Renewing → Chapter. |
| 7 - | Bolt |
| Renew after removing |
| Tighten in unladen position → Chapter. |
| 70 Nm +180° |
| 8 - | Bolt |
| Renew after removing |
| 70 Nm +180° |
| 9 - | Rear bonded rubber bush |
| Renewing → Chapter. |
| 10 - | Nut |
| 11 - | Subframe |
