Remove radiator grille
→ General body repairs, exterior; Rep. gr.66. |
|
|
|
| – |

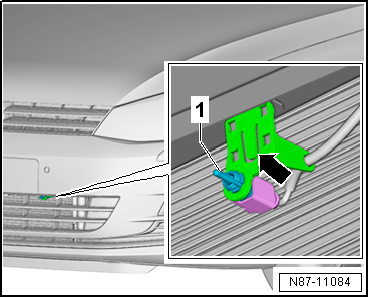

Remove ambient temperature sensor -G17--1-
from bracket -arrow-. |
| – |
Remove ambient temperature sensor -G17- upwards. |
| – |
Disconnect electrical connector. |
 Note
| Ensure electrical wiring connector is properly seated to
prevent ingress of water (spray water). |
| – |
Install in reverse order. |
| Assembly overview - radiator grille
→ General body repairs, exterior; Rep. gr.66. |
|
|
|
Questions & answers
Removing and installing ambient temperature sensor -G17- — Volkswagen Golf Mk7
How do I remove the Golf Mk7 ambient temperature sensor -G17-?
Remove the radiator grille first, then unclip and disconnect the sensor.
