Remove dash panel
→ General body repairs, interior; Rep. gr.70. |
| – |

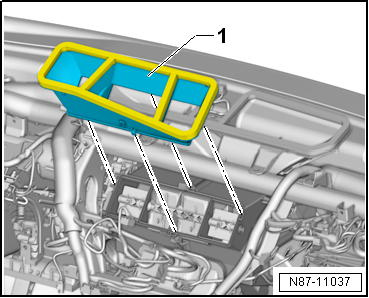

Remove air duct for centre dash panel vent
-1- upwards from heater and air
conditioning unit. |
| Installation is carried out in reverse order of removal. |
| Dash panel; Assembly overview - dash panel
→ General body repairs, interior; Rep. gr.70. |
|
|
|
Questions & answers
Removing and installing air duct for centre dash panel vent — Volkswagen Golf Mk7
How do I remove the Golf Mk7 centre vent air duct?
Remove the dash panel first. Remove the centre duct from the air distribution housing.
Removing
–
Remove dash panel
→ General body repairs, interior; Rep. gr.70.
...
