| Intake manifold sender -GX9- consists of: |
| Intake air temperature sensor 2 -G299- |
| Intake manifold pressure sender -G71- |
| – |
Remove air filter housing
→ Chapter. |
|
|
|
| – |

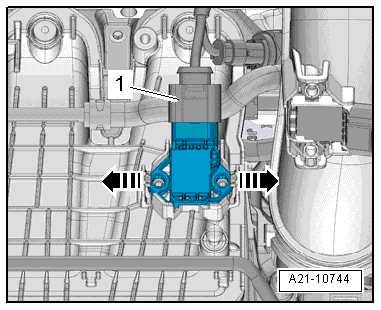

Disconnect electrical connector -1-. |
| – |
Release fasteners -arrows-, and
remove intake manifold sender -GX9-. |
| Installation is carried out in the reverse order; note the
following: |
 Note
| If the retaining tabs broke off during removal, the sender
can be secured using two securing bolts as per
→ Electronic Parts Catalogue. Specified torque:
→ Anchor |
|
|
|
| Component |
Specified torque |
| Intake manifold sender -GX9- |
3 Nm |
| – |
Install air filter housing
→ Chapter. |
|
|
|
Questions & answers
Removing and installing intake manifold sender -GX9- — Volkswagen Golf Mk7
How do I remove the Golf Mk7 1.4 TSI intake manifold sender -GX9-?
Disconnect the connector, unbolt from the manifold and remove. Renew seal.
Special tools and workshop equipment
required
Assembly tool -T10118-
...
