Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - track rod, multi-link suspension, front-wheel drive

This assembly overview covers the FWD Volkswagen Golf Mk7 rear track rod: subframe and wheel bearing housing connections, with a bolt torqued to 70 Nm plus 180°, always renewed.

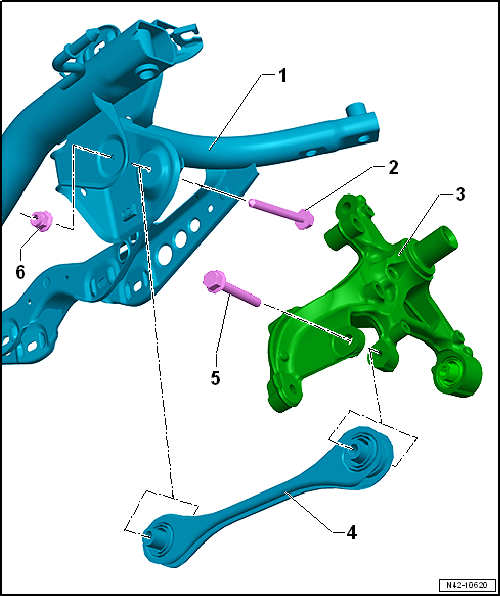

Assembly overview - track rod, multi-link suspension, front-wheel drive

1 -  Subframe
2 -  Bolt
Renew after removing
70 Nm +180°
3 -  Wheel bearing housing
4 -  Track rod
Removing and installing → Chapter
5 -  Bolt
Renew after removing
Always tighten threaded connections in unladen position → Chapter
70 Nm +180°
6 -  Nut
Renew after removing
