Volkswagen Golf Mk7 Service & Repair Manual: Undercoating, additional protected areas on CNG-powered vehicles

This page covers the additional undercoated areas specific to CNG-powered Volkswagen Golf Mk7 models — around the gas tank and supply line routing.

  Note
Undercoating (stone-chipping protection) applied during repair work must be identical in appearance and thickness to the original undercoating.
Water drainage holes must remain clear.
All threaded studs and welded nuts with metric threads as well as all other studs and contact surfaces for assembly must be functional following the application of the undercoating.
Undercoating, rear, additional for CNG (gas-powered vehicle)

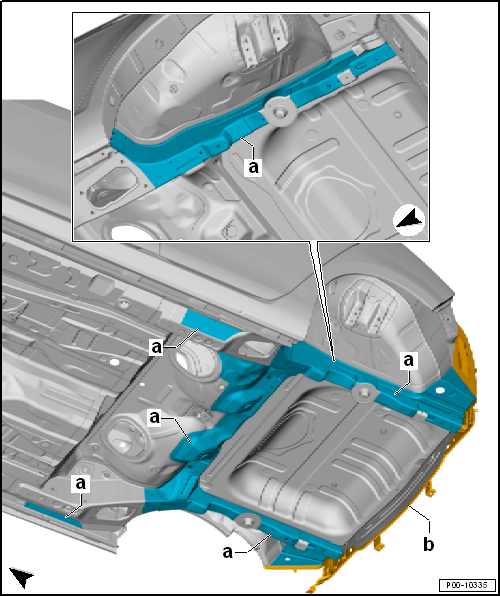

Undercoating, additional protected areas on CNG-powered vehicles

a -  Undercoating
Coat thickness: 0.3 mm
b -  Undercoating
Coat thickness: 0.5 mm
