Using removal wedge -3409-, release lever -T10039- and hook -T40207-, this page covers removing the Volkswagen Golf Mk7 through-loading aperture cover frame — fold down the centre armrest and open the lid first.
| Special tools and workshop equipment
required |
|
|
|
| |
|
Removal wedge -3409 |
| |
|
Release lever -T10039 |
| |
|

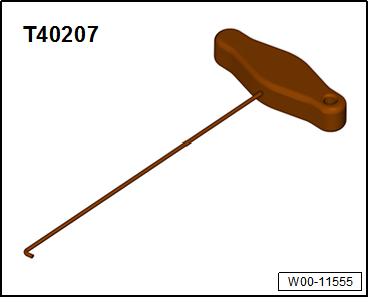

Hook -T40207 |
| – |
Fold down centre armrest and open lid for through-loading
aperture. |
| – |

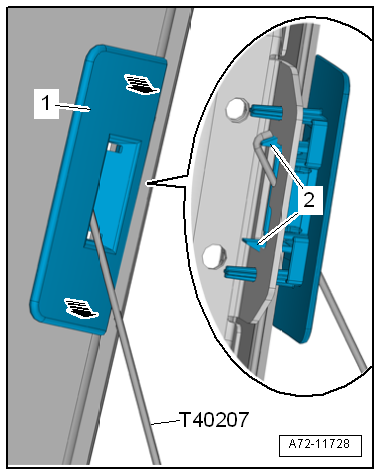

Unclip trim -1- from rear seat
backrest -arrows- using removal
wedge -3409-. |
| – |
To do this, disengage locking lugs -2-
alternately using hook -T40207-. |
|
|
|
| – |

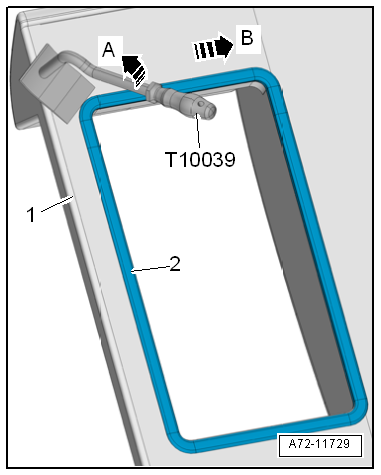

Lever cover frame -2- off rear
seat backrest -1--arrows A- using
removal lever -T10039-. |
| – |
Start in upper left corner and proceed in
-direction of arrow B-. |
| – |
Remove cover frame for through-loading aperture. |
|
|
|
| – |

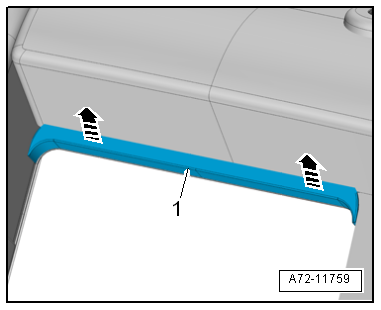

Push backrest padding and backrest cover slightly towards
side and unclip stop strip -1- for
through-loader aperture lid from rear seat backrest
-arrows-. |
| – |
Remove stop strip for through-loading aperture. |
| Installation is carried out in reverse order. |
|
|
|
