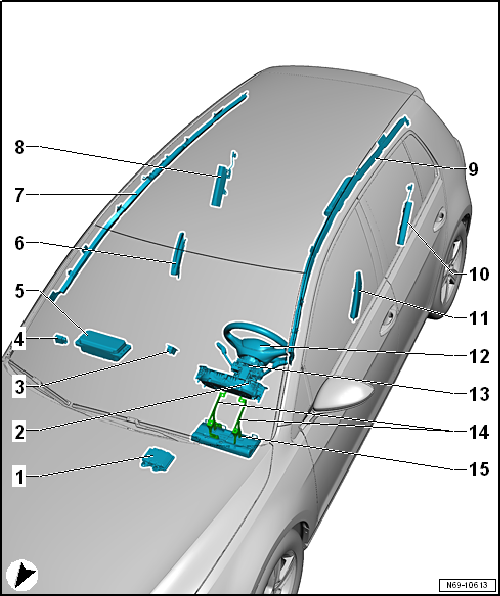

| Overview of fitting locations - airbag system |
| 1 - |
Airbag control unit -J234- |
- Assembly overview
→ Chapter
| 2 - |
Airbag warning lamp -K75- |
- Integrated in dash panel insert
- Cannot be renewed separately.
- Removing and installing dash panel insert
→ Electrical system; Rep. gr.90
| 3 - |
Front passenger side airbag deactivated warning lamp -K145- |
- Cannot be renewed separately
- Removing and installing
→ Electrical system; Rep. gr.96
| 4 - |
Key operated switch to deactivate front passenger side airbag -E224- |
- Removing and installing
→ Chapter
| 5 - |
Front passenger side airbag |
- With front passenger side airbag igniter 1 -N131-
- Can be locked and activated via key operated switch to deactivate front
passenger side airbag -E224-.
- Assembly overview
→ Chapter
| 6 - |
Front side airbag, front passenger side |
- With side airbag igniter on front passenger side -N200
- Assembly overview
→ Chapter
| 7 - |
Curtain airbag, front passenger side |
- With front passenger side curtain airbag igniter -N252-
- Assembly overview
→ Chapter
| 8 - |
Rear side airbag, front passenger side |
- With rear side airbag igniter on front passenger side -N202-
- Assembly overview
→ Chapter
| 9 - |
Curtain airbag, driver side |
- With driver side curtain airbag igniter -N251-
- Assembly overview
→ Chapter
| 10 - |
Rear side airbag, driver side |
- With rear side airbag igniter on driver side -N201
- Assembly overview
→ Chapter.
| 11 - |
Front side airbag, driver side |
- With side airbag igniter on driver side -N199-
- Assembly overview
→ Chapter
- With driver side airbag igniter -N95-
- Assembly overview
→ Chapter
| 13 - |
Steering column electronics control unit -J527- |
- With airbag coil connector and return ring with slip ring -F138-
- Assembly overview
→ Electrical system; Rep. gr.94
| 14 - |
Bracket for knee airbag on driver side |
- Assembly overview
→ Running gear, axles, steering; Rep. gr.48.
| 15 - |
Knee airbag, driver side |
- With driver side knee airbag igniter -N295-
- Assembly overview
→ Chapter.
