Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - roof spoiler

This assembly overview covers the Volkswagen Golf Mk7 roof spoiler (PC/PET material) with its foam-strip intermediate piece and four foam-ring fasteners, plus the right side spoiler secured with adhesive tape and hexagon nuts (6.0 Nm).

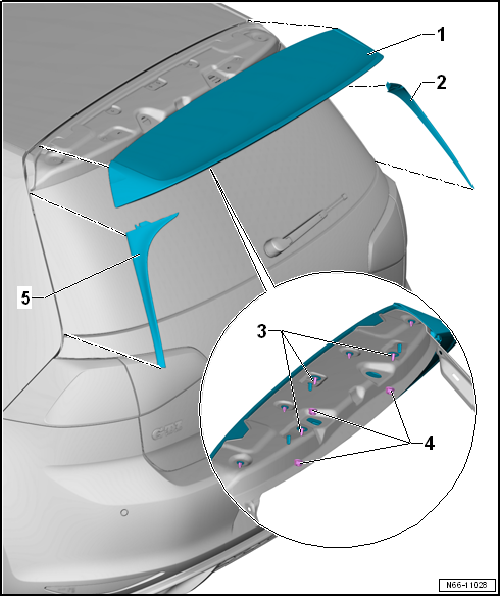

Assembly overview - roof spoiler

1 -  Roof spoiler
  • Material PC/PET
  • With foam strip serving as intermediate piece
  • With 4 fasteners with foam ring
  • Removing and installing → Chapter
2 -  Right side spoiler
  • With adhesive tape
  • Removing and installing → Chapter.
3 -  Hexagon nut
  • Qty. 3
  • 6.0 Nm
4 -  Clip
  • Qty. 4
5 -  Seal for clip
  • Qty. 4
6 -  Centring pin
  • Qty. 3
7 -  Seal for centring pin
  • Qty. 3
8 -  Stud
  • Qty. 3.
  • Part of roof spoiler
9 -  Seal for stud
  • Qty. 3
10 -  Adhesive tape
  • Part of side spoiler
11 -  Left side spoiler
  • With adhesive tape
  • Removing and installing → Chapter
12 -  Protective film
13 -  Protective film

    Questions & answers

    Assembly overview - roof spoiler — Volkswagen Golf Mk7

    What does the Golf Mk7 roof spoiler assembly show?
    The roof spoiler (PC/PET material), foam strip intermediate piece, four fasteners with foam rings, and the right side spoiler with adhesive tape.
    What material is the Golf Mk7 roof spoiler?
    PC/PET (polycarbonate/polyester blend) — a lightweight, impact-resistant plastic.
