Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - exterior mirror

This assembly overview covers the Volkswagen Golf Mk7 exterior mirror (left side shown; right is similar): the mounting bolts (9.0 Nm, qty 2), clip, cover and adjuster unit with its own bolts.

  Note
Only the left side is shown. The right side is similar.

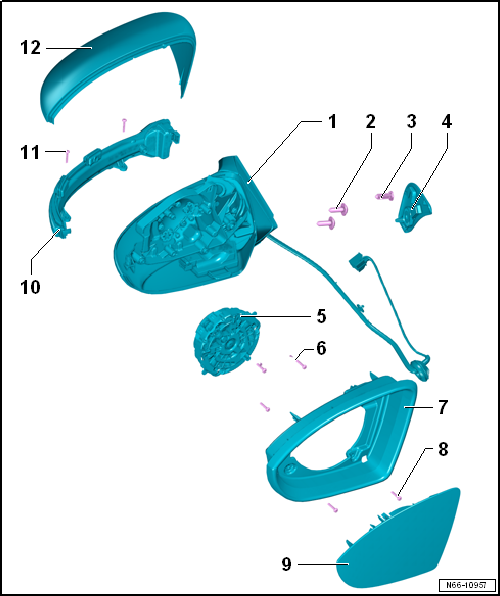

Assembly overview - exterior mirror

1 -  Mirror mounting

Removing and installing → Chapter

2 -  Bolt
  • Qty. 2
  • 9.0 Nm
3 -  Clip
4 -  Cover
Removing and installing → Chapter.
5 -  Adjuster unit
  • Removing and installing → Chapter
6 -  Bolt
  • Qty. 3
  • 1.0 Nm
7 -  Mirror frame
  • Removing and installing → Chapter
8 -  Bolt
  • Qty. 2
  • 1.0 Nm
9 -  Mirror glass
  • Removing and installing → Chapter
10 -  Turn signal
  • Removing and installing → Electrical system; Rep. gr.94
11 -  Bolt
  • Qty. 2
  • 1.0 Nm
12 -  Mirror cover
  • Material: ABS
  • Removing and installing → Chapter
