Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing underbody heat shield

This page covers removing the Volkswagen Golf Mk7 underbody heat shield, noting the procedure may vary slightly by engine — starting with the centre underbody panel and both tunnel cross-pieces.

  Note
The removal and installation procedures may have to be modified slightly depending on engine fitted.

Removing and installing underbody heat shield

Removing
–  Removing centre underbody panel → Chapter.

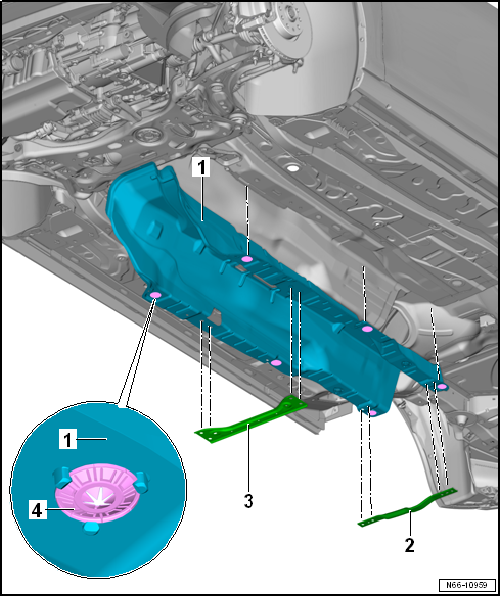

–  Removing front tunnel cross-piece -3- → Chapter.
–  Removing rear tunnel cross-piece -2- → Chapter.
–  Removing rear exhaust system → Rep. gr.26.
–  Detach lock washers -4- (qty. 6) and remove tunnel heat shield -1- to the back.
Installing
Installation is carried out in reverse order.
