Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing oil pressure regulating valve -N428-

This page covers removing the Volkswagen Golf Mk7 oil pressure regulating valve -N428- — remove the noise insulation and detach the heat insulation sleeves first.

Removing   Note Fit all heat insulation sleeves in the original position when installing. –  Remove noise insulation → General body repairs, exterior; Rep. gr.66. –  Detach heat insulation sleeves.

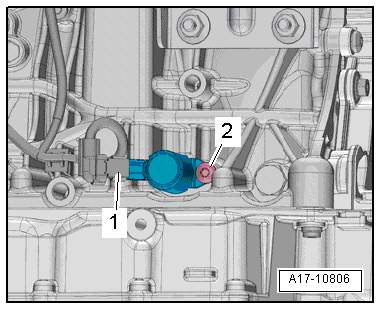

–  Disconnect electrical connector -1-.   Note Place a cloth underneath to catch escaping engine oil. –  Unscrew bolt -2- and pull off valve for oil pressure control -N428-. Installing Installation is carried out in the reverse order; note the following:   Note Renew O-ring. –  Install noise insulation → General body repairs, exterior; Rep. gr.66. Specified torques → Chapter „Assembly overview - oil filter/oil pressure switch“

Questions & answers

Removing and installing oil pressure regulating valve -N428- — Volkswagen Golf Mk7

How do I remove the Golf Mk7 1.4 TSI oil pressure valve -N428-?

Disconnect connector, unbolt from filter housing, remove and renew seals.
