Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - three-point seat belt, estate, without belt tensioner

This assembly overview covers the Volkswagen Golf Mk7 estate rear seat belt without a tensioner: the belt guide, inertia reel, a 40 Nm bolt requiring mandatory renewal after an accident, and two 8 Nm bolts.

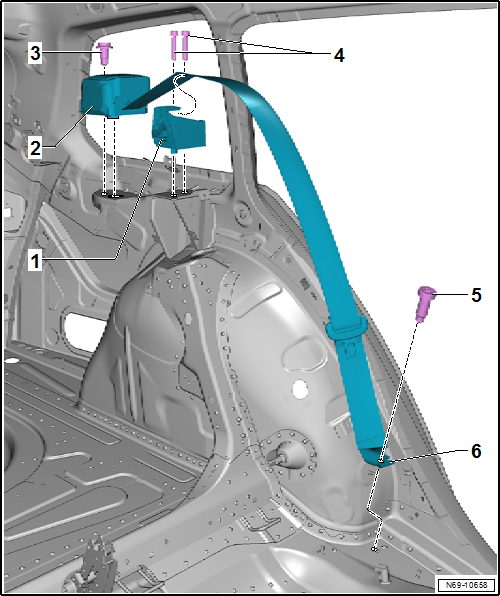

Assembly overview - three-point seat belt, estate, without belt tensioner

1 -  Belt guide
  • Removing and installing → Chapter
2 -  Belt inertia reel
  • Removing and installing → Chapter
3 -  Bolt
  • If removed due to an accident with seat belt fastened, renew bolt
  • 40 Nm
4 -  Bolts
  • Qty. 2
  • 8 Nm
5 -  Bolt for rear outer belt end fitting
  • If removed due to an accident with seat belt fastened, renew bolt
  • 40 Nm
6 -  Rear outer belt end fitting
  • Removing and installing → Chapter

    Questions & answers

    Assembly overview - three-point seat belt, estate, without belt tensioner — Volkswagen Golf Mk7

    What does the Golf Mk7 estate rear belt without tensioner assembly show?
    Belt guide, inertia reel, bolt and hardware. D-pillar routing differs from hatchback models.
