Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - skid plate

This assembly overview covers the Volkswagen Golf Mk7 underride guard (skid plate), removed by taking out its bolts on both sides and pulling it backward off the lock carrier.

  Note
The removal and installation procedures may have to be modified slightly depending on engine fitted.

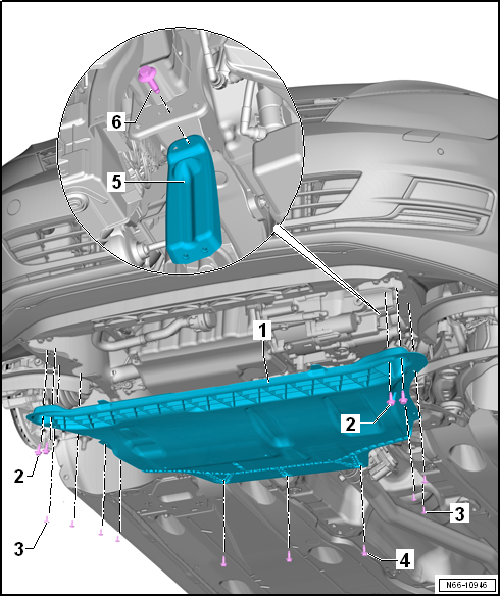

Assembly overview - skid plate

1 -  Underride guard
  • Removing
–  Remove bolts -2-, -3- and -4-.
–  Pull out noise insulation off lock carrier to the back.
2 -  Bolt
  • Qty. 2 each on left and right
  • 20 Nm
3 -  Bolt
  • Qty. 3 on left
  • Qty. 4 on right
  • 2.0 Nm
4 -  Bolt
  • Micro-encapsulated; renew after each removal
  • Qty. 3
  • 20 Nm
5 -  Skid plate bracket
  • Left and right.
6 -  Bolt
  • Qty. 1 on each side
  • 20 Nm

    Questions & answers

    Assembly overview - skid plate — Volkswagen Golf Mk7

    What is the Golf Mk7 skid plate?
    An underride guard that protects the engine and gearbox sump from damage when driving over kerbs or rough surfaces. Removed by undoing bolts.
