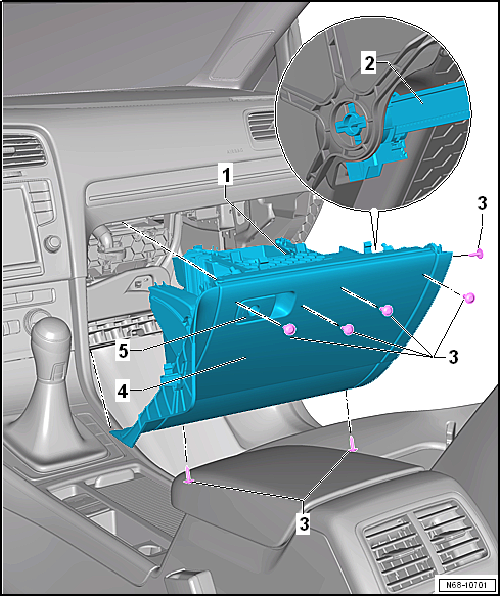

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - glove compartment
This assembly overview covers the Volkswagen Golf Mk7 glove compartment: the box itself, its damper element with light switch -E26-, seven 1.5 Nm bolts, and the lid.
| 1 - | Glove compartment |
- Removing and installing → Chapter
| 2 - | Damper element |
- For glove compartment lid
- With glove compartment light switch -E26-
- Removing and installing → Chapter
| 3 - | Bolt |
- Qty. 7
- 1.5 Nm
| 4 - | Glove compartment lid |
- Removing and installing → Chapter
| 5 - | Glove compartment opener |
- Removing and installing → Chapter
