Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - guides for bumper cover

This assembly overview covers the guide brackets for the Volkswagen Golf Mk7 rear bumper cover, including R-Line and R variants — hexagon nuts torqued to 3.5 Nm, with a separate bracket for the tail light on each side.

Volkswagen R GmbH, optional equipment, “R Line” and “R”

  Note

Different versions. For allocation see → Electronic Parts Catalogue “ETKA”.

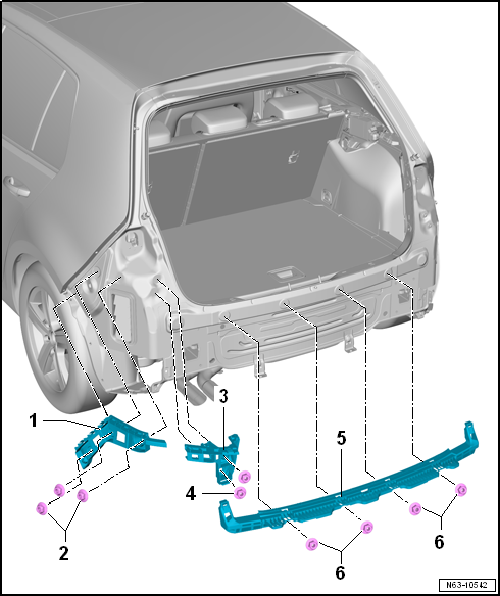

1 -	Guide bracket

• Left and right

2 -	Hexagon nut

• Qty. 3 on each side
• 3.5 Nm

3 -	Guide bracket

• For tail light on left and right

4 -	Hexagon nut

• Qty. 2 on each side
• 3.5 Nm

5 -	Centre guide profile

6 -	Hexagon nut

• Qty. 4
• 3.5 Nm
