Using support plate -VW 309-, gearbox support -VW 353-, shackle -10-222 A/12-, lifting tackle -2024 A-, eye bolt -3368- and engine/gearbox support -VAS 6095-, this page covers mounting the Volkswagen Golf Mk7 powertrain for bench work.

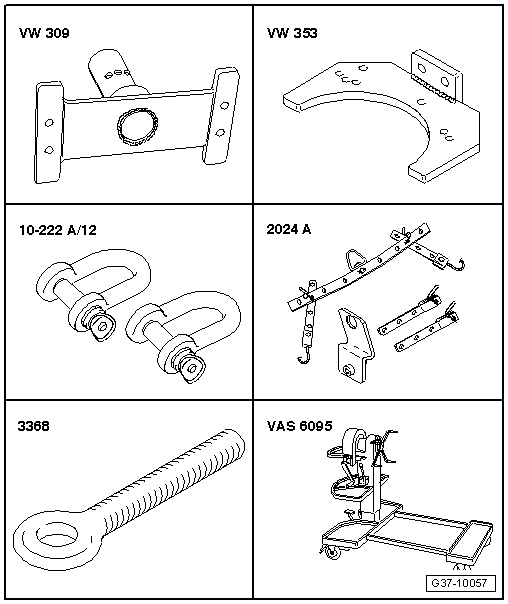

| Special tools and workshop equipment required |
| Engine and gearbox support -VAS 6095- |
| Workshop hoist -VAS 6100- |

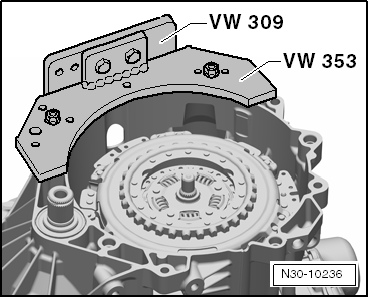

| Secure gearbox on gearbox support -VW 353-. |
| Gearbox is sealed so that no oil can escape
→ Anchor. |
|
|
|

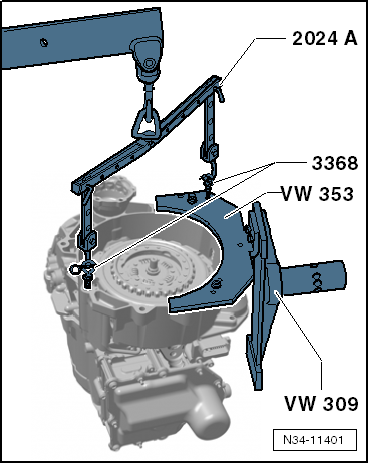

| Lifting gearbox into engine and gearbox support |
| Gearbox is sealed so that no oil can escape
→ Anchor. |
| The gearbox is lifted onto the engine and gearbox support
-VAS 6095- together with the gearbox support -VW 353- using the
workshop hoist -VAS 6100-. |
|
|
|
Questions & answers
Installing to engine and gearbox support — Volkswagen Golf Mk7
How do I install the Golf Mk7 DSG on the engine/gearbox support?
Use support plate -VW 309-, gearbox support -VW 353- and shackles. Lower the powertrain, align the mounts and torque all bolts.
