Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing seat trim on sill side, seat of type "ergo Aktiv"

Using removal wedge -3409-, this page covers removing the Volkswagen Golf Mk7 ergo Aktiv seat's sill-side trim on the left side (right is similar) — adjust the seat to fully upright position first.

  Note
Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate.
Special tools and workshop equipment required

  Removal wedge -3409-
Removing
–  Adjust seat to fully upright position.
–  Remove backrest adjustment → Chapter.
–  Remove handle for seat height adjustment → Chapter.


Removal wedge -3409

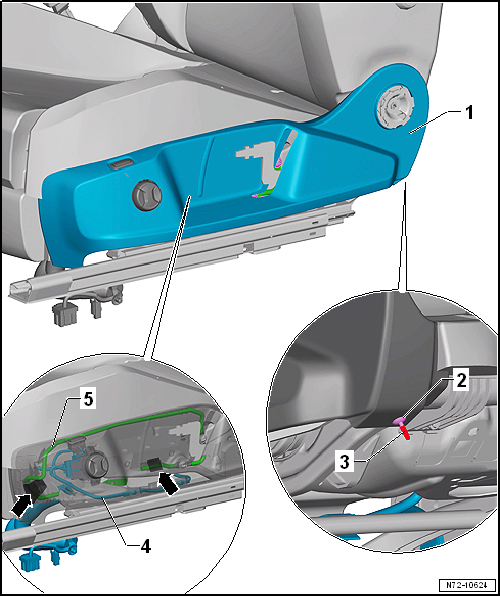

Removing and installing seat trim on sill side, seat of type "ergo Aktiv"

–  Press in clamping pin -3-.
–  Lever off spreader rivets -2- using removal wedge -3409-.
–  Open locking mechanism -arrows- on trim -1-.
–  Remove trim from bracket -5- towards front.
–  Unclip wiring harness -4- from trim -1-.
–  Release and pull off connectors on switches.
Installing
Installation is carried out in reverse order.
